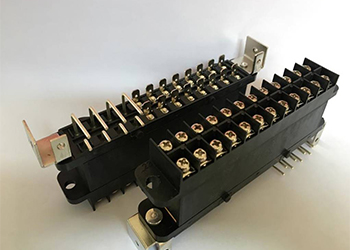

Auto Shunt

Features

• Quick and easy alternative to commonly used CT shorting blocks.
• Innovative design allows for various combinations of power and signal contacts.
• Selective load up to 12 CT contacts. Accepts 2.5 mm2 and 4 mm2 wire.

Technical Characteristics

Electrical Characteristics:

• Contact Current Rating : 25 A continuous.
• Initial Contact Resistance : 0.004Ω max.
• Insulation Resistance : 5GΩ
• Voltage Proof : 2000 V R.M.S. min.
• Working Voltage : 250 V AC

Material and Finishes

• Insulator : Glass filled Nylon 66, UL 94V-0.
• Colour : Black.
• Contacts : Copper Alloy, Silver plated.
• Spring Band : Beryllium Copper, Silver Plated

Mechanical Characteristics:

• Polarization & Blind Mate : Design of Connector’s body provides Polarization and blind mating feature
• Mechanical Operation : 100 couplings minimum.
• Working Temperature : -55 0C to 105 0C.
